Hot Rolled Stainless Steel U Channel 50 X 37 X 4.5 Not Perforated Structure Building

Name: Hot Rolled Stainless Steel U Channel 50 X 37 X 45 Not Perforated Structure Building
Brand: TISCO
Price: 1 USD

Wholesale Hot Rolled Stainless Steel U Channel 50 X 37 X 4.5 Not Perforated Structure Building from china suppliers

Brand Name : TISCO

Model Number : 301 304 304L 309S 321 316 316L 317 317L 310S 201 202 321 329 347 347H 201 202 410 420 430

Certification : ISO9001

Place of Origin : Jiangsu,China

MOQ : 1MT

Price : Negotiable

Payment Terms : L/C, T/T, Western Union/Paypal

Supply Ability : 2000MT/Month

Delivery Time : 3-15work days

Packaging Details : Exporting package/wooden box package/Or per customers’ requirement

Name : Stainless Steel Channel 50*37*4.5 U Channel

Grade : 301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316

Surface : 2B/BA/HL/NO.4/8K/Embossed/Gold/Rose Gold/Black Gold

Standard : AiSi, ASTM, bs, DIN, GB, JIS

Technique : Cold Rolled Hot Rolled

Thickness : 1-30mm

Contact Now

Hot Rolled Stainless Steel Channel 50*37*4.5 U Channel Not Perforated Structure Building

Description:

Glass U Channel. Metal U Channel & Metal J Channel. Steel U Channel. Fencing U Channel.U Beam is a type of steel beam, which is a structural steel product with multiple uses mainly in the construction sector. U-Beams are also known as a parallel flange channel or C Beams. They typically can be welded together to form I-Beams.

specifications	height	Legs wide	waist depth	cross-sectional area(cm²)	Theoretical weight
5#	50	37	4.5	6.928	5.438
6.3#	63	40	4.8	8.451	6.634
6.5#	65	40	4.3		6.709
8#	80	43	5.0	10.248	8.045
10#	100	48	5.3	12.748	10.007
12#	120	53	5.5		12.059
12.6	126	53	5.5	15.692	12.319
14#a	140	58	6.0	18.516	14.535
14#b	140	60	8	21.316	16.733
16#a	160	63	6.5	21.962	17.24
16#b	160	65	8.5	25.162	19.752
18#a	180	68	7	25.699	20.174
18#b	180	70	9	29.299	23
20#a	200	73	7	28.837	22.637
20#b	200	75	9	32.837	25.777
22#a	220	77	7	31.846	24.999
22#b	220	79	9	36.246	28.453
25#a	250	78	7	34.917	27.41
25#b	250	80	9	39.917	31.335
25#c	250	82	11	44.917	35.26
28#a	280	82	7.5	40.034	31.427
28#b	280	84	9.5	45.634	35.832
28#c	280	86	11.5	51.234	40.219
30#a	300	85	7.5		34.463
30#b	300	87	9.5		39.173
30#c	300	89	11.5		43.883
32#a	320	88	8	48.513	38.083
32#b	320	90	10	54.913	43.107
32#c	320	92	12	61.313	48.131
36#a	360	96	9	60.910	47.814
36#b	360	98	11	68.110	53.466
36#c	360	100	13	75.310	59.118
40#a	400	100	10.5	75.068	58.928
40#b	400	102	12.5	83.068	65.208
40#c	400	104	14.5	91.068	71.488

Hot Rolled Stainless Steel U Channel 50 X 37 X 4.5 Not Perforated Structure Building

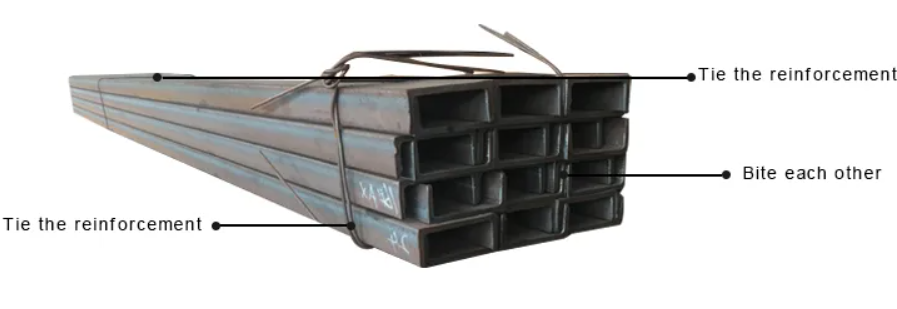

Package:

Hot Rolled Stainless Steel U Channel 50 X 37 X 4.5 Not Perforated Structure Building

Application:

Hot Rolled Stainless Steel U Channel 50 X 37 X 4.5 Not Perforated Structure Building

Certificate:

About Us:

Pucheng is a professional enterprise integrating seamless steel pipes, stainless steel pipes, steel profiles, galvanized steel coils, color-coated steel coils, copper pipes, aluminum sheets and non-ferrous metals. Focusing on manufacturing and international business fields, in line with the principles of sincerity, credit, mutual benefit and abundant Chinese resources, we have provided customers with the best quality products and value-added services of Pucheng for more than 10 years.

The company mainly produces: steel pipes (seamless pipes, welded pipes), steel plates, steel rods, steel coils, steel strips and steel bars. We have: stainless steel/carbon steel/iron/copper/aluminum/alloy steel/galvanized/chrome plating and other materials, our products meet the production standards, each product has been successfully processed after many tests to ensure the quality and effect of the product. We provide polishing/bending/cutting/transport services, support secondary processing, and we have the most advanced equipment to support production according to drawings.
